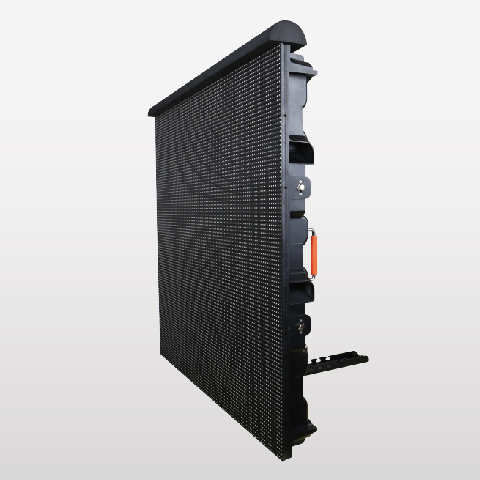

LED Stadium Display

LED Stadium Display

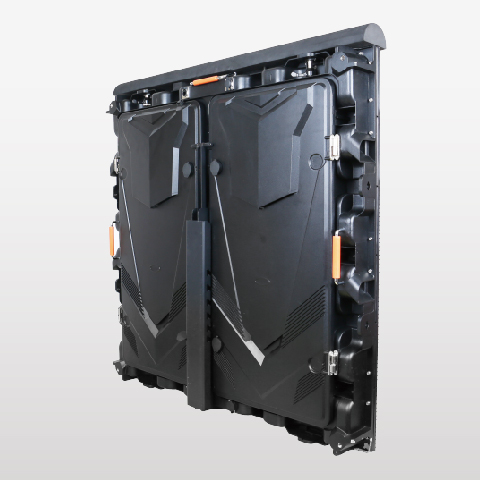

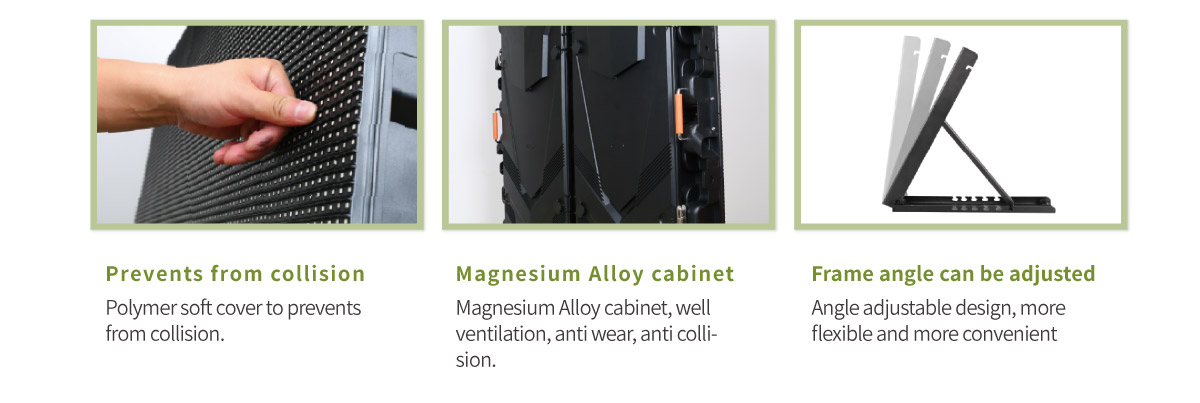

▪ Magnesium Alloy cabinet, well ventilation, anti wear, anti

  collision


▪ Polymer soft cover to prevents from collision


▪ Seamless stitching for better display

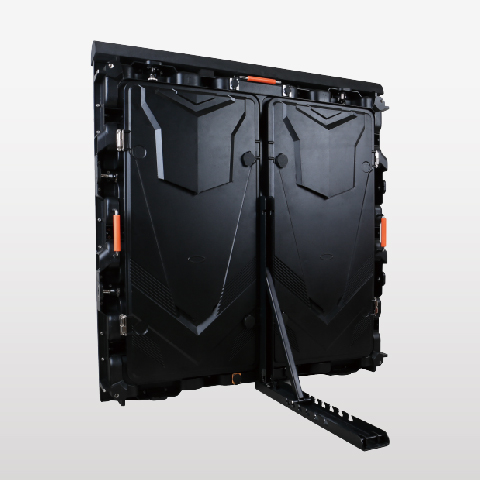

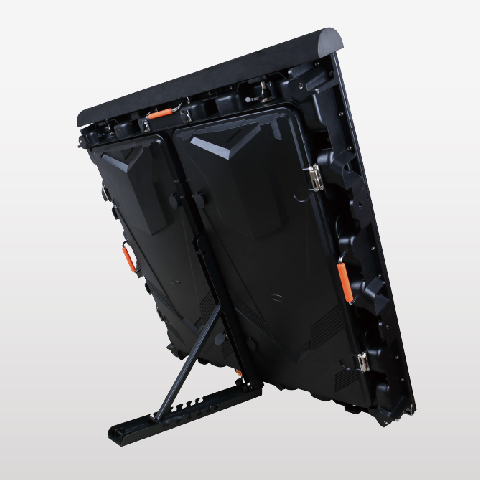

▪ Frame angle can be adjusted




Immediately consult




Product parameters

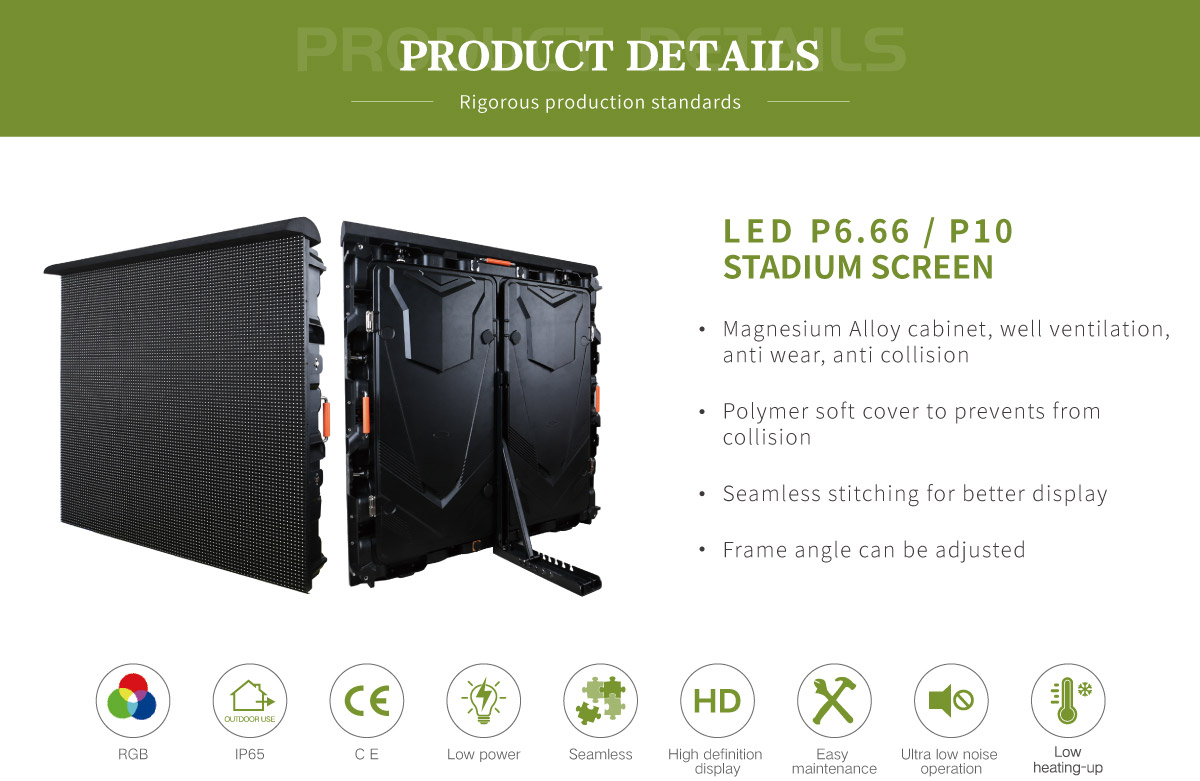

LED P6.66 / P10 STADIUM SCREEN
Type Number M10-S M666
Screen Code COL.PB.010.8004 COL.LB.666.2001
Pixel Pitch (MM) 10 6.66
Pixel Density (Dot/) 10000 22500
Scan Type 1/2 Scan 1/6 Scan
Screen Brightness (CD/) ≥5000 ≥4500
Best Viewing Distance (M) >10 >7
Module Resolution 32X16 48X24
Screen Resolution 96X96 144X144
 Cabinet Max. Power (W) 1200 900

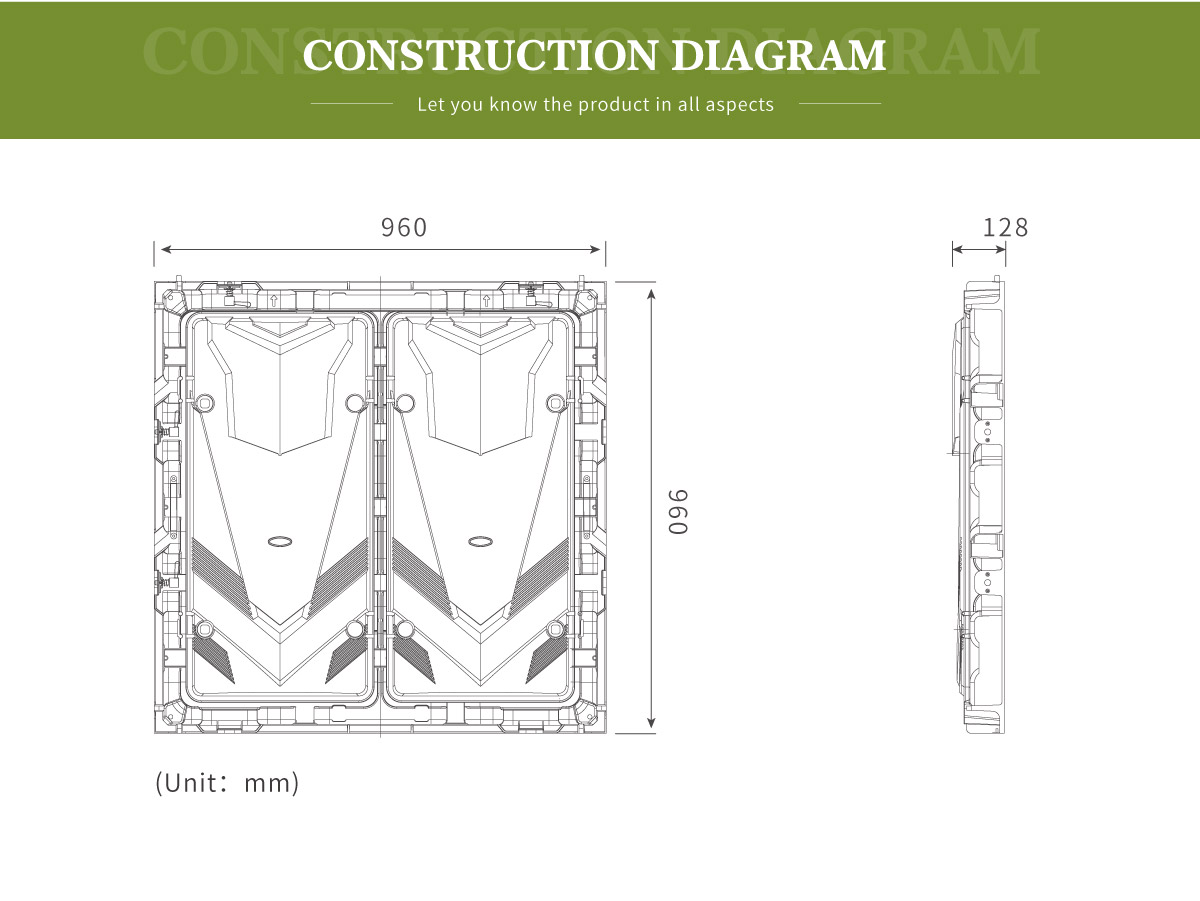

Cabinet Size (MM) 960*960*128
LED Standard SMD3535
Grey Scale 16384
Refresh Frequency ≥1920Hz
View Angle 120°
Cabinet Weight (kg) 32.5
Cabinet Material Magnesiume Alloy
IP Grade IP65
Life Span ≥100,000 Hours
Screen Working Voltage AC 220V/(110V)±15%
Control Distance LAN:100m;Optical fiber:10 km

×
