Home> Product> Facade LED Lighting & Display> LED Square Flood Light

LED Square Flood Light

LED Square Flood Light

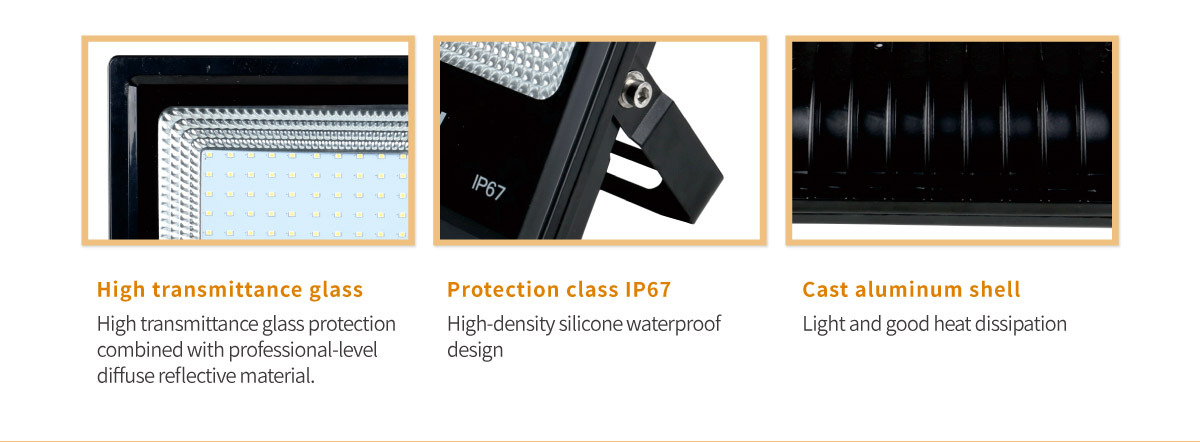

▪ High transmittance glass protection combined with

  professional-level diffuse reflective material


▪ High-density silicone waterpro of design, waterproof

  rating up to IP67

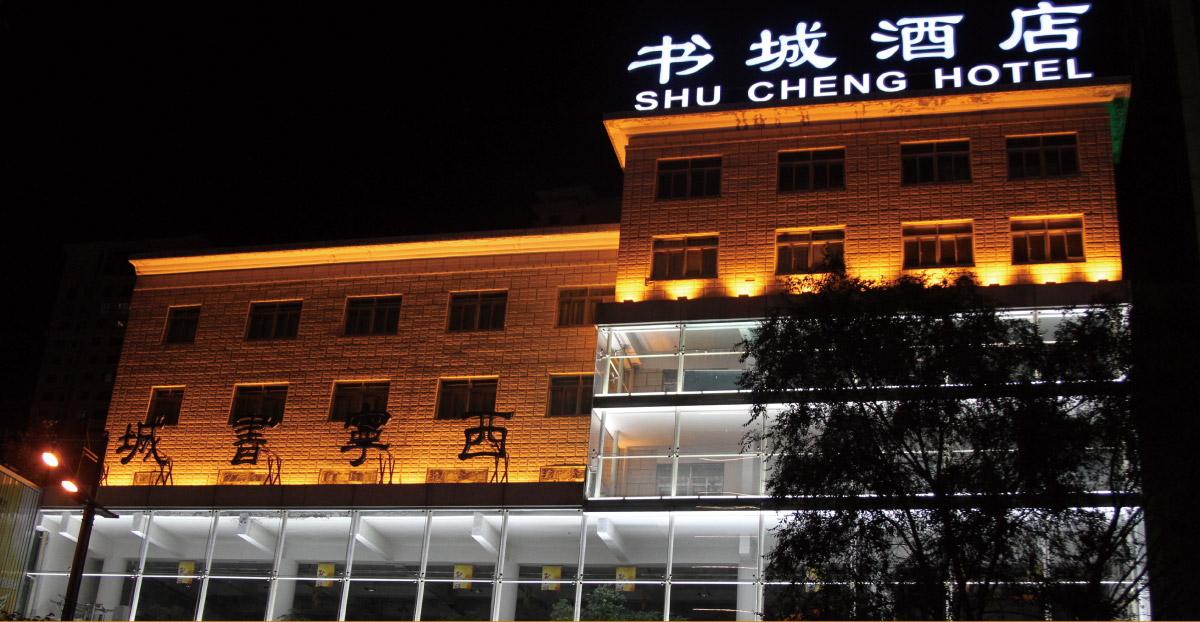

▪ Suitable for building facades, stage fill light, photo

  studio and other fill light occasions


▪ Cast aluminum shell, light and good heat dissipation


Immediately consult




Product parameters



Type Number WF-S10W WF-S20W WF-S30W WF-S50W WF-S100W
Product  Code 54.03.011.100 54.03.011.101 54.03.011.102 54.03.011.103 54.03.011.104

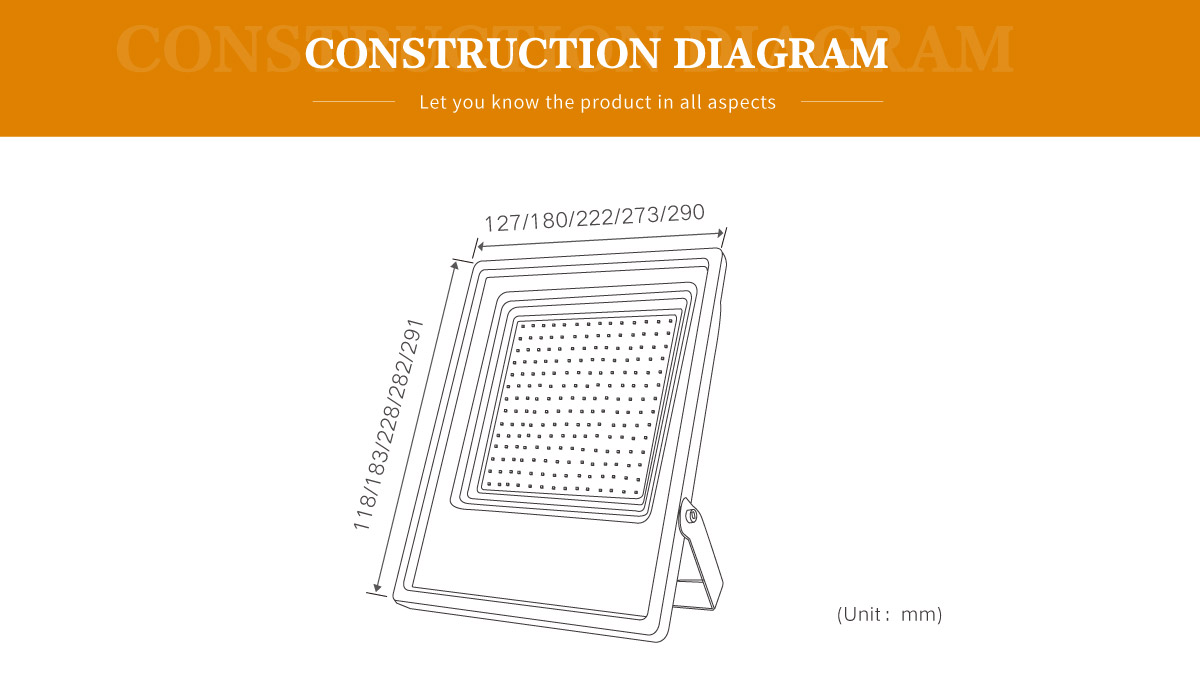

Standard size（mm） 127*118 180*183 222*228 273*282 290*291
 LED Quantity  15 30 42 84 168
Inner box size (mm) 135x50x105 190x50x145 235x50x210 285x55x230 365x55x305
Outer box size (mm) 540x290x270 520x210x450 520x250x440 570x300x250 570x380x320
Packing QTY/carton 50 PCS 30 PCS 20 PCS 10 PCS 10 PCS
Power(W) 10W 20W 30W 50W 100W
Weight (g) 460 825 1200 1700 2260
 Lumen 120/W
Cast distance 5-8M
Light source sanan 2835
Housing material Die-cast aluminum
IP Grade IP67
Light body color Black
Beam angle 120°
Life length 20000h
Operating Voltage 180-265V
Environmental temperature -30°-80°

×
